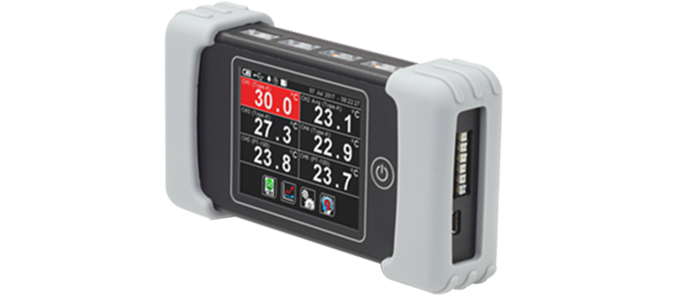

Hand Held 6 Channel Multi-Thermocouple and RTD Datalogger

This six channel (4 x thermocouple and 2 x Pt100) hand held datalogging indicator will accept Types K, T, J, N, E, R or S thermocouple sensors and RTD sensors. It features a clear backlit touchscreen display which can show all 6 channels at the same time. The unit interface allows the user to configure each channel for input type, alarm, maths and display options. Within the settings, the display language can be selected between English, Spanish, French, German, Italian or Chinese. The unit is powered by built in battery, USB or mains adaptor. The unit is hand held, however it comes with a built-in table top stand allowing the user to position the datalogger on a suitable surface. Supplied with a 4GB SD card (up to 32GB can be used) and mains charger, software downloadable however 3rd party software can also be used due to the Modbus interface.
  • Up to 6 channels can be logged at the same time
  • Selectable for thermocouple types K, T, J, E, R or S connected via a miniature flat pin plug
  • RTD sensors can also be used via wiring terminals
  • 2.83" resistive touch TFT screen, 320 x 240 pixels, backlit
  • °C/°F selectable
  • Range:
    Type K: -200 to +1372°C
    Type T: -200 to +400°C
    Type J: -200 to +1200°C
    Type N: 0 to 1300°C
    Type E: -200 to 1000°C
    Type R/S: 0 to 1768°C
    RTDs: -200 to 850°C
  • Accuracy:
    Thermocouple: +/-0.1% or +/-0.8°C (whichever is greater)
    RTD: +/-1.0% or 1.0°C (whichever is greater)
  • Resolution: 0.1°C up to 1000°C, 1.0°C above 1000°C
  • Hand held with moulded rubber holster and table top stand
  • Supplied with 4GB SD card and 5V DC mains power adaptor
The following types are available:

Hand Held 6 Channel Multi-Thermocouple/RTD Datalogger

Order Code Description 1 - 4 5 - 9 10+ Buy
753-850 6 Channel Multi-Thermocouple/RTD Input Datalogger £518.00 £476.00 £439.00 Add
