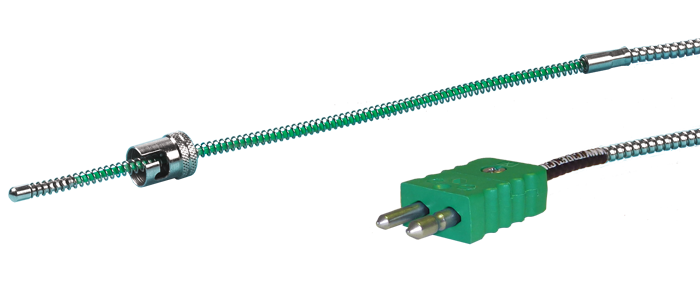

Heavy Duty Bayonet Thermocouple

Suitable for plastics machinery and general purpose applications, these assemblies have a total length of 2 mtrs. The flexible stainless steel armoured cable provides increased mechanical protection in arduous environments. These assemblies are supplied with a 200mm spring which an industry standard one slot adjustable bayonet cap fitting is screwed onto. The fitting can be fine tuned for positioning on site. The sensing tip is incorporated within a 18mm long x 4.7mm diameter tube which the cable and armour are sealed to. The sensor is terminated in a standard round pin plug.
  • Thermocouple types K or J available, grounded junction
  • Sheath and lead rated -50ºC to +250ºC
  • Sheath: 316L stainless steel 4.7mm dia x 18mm long
  • Leads: 1.8mtrs Stainless Steel Armoured over PFA insulated cable terminated in a standard round pin plug. Spring length 200mm
PRICE PROMISE - WE WON'T BE BEATEN! click here for details

Heavy Duty Bayonet Thermocouple with Stainless Steel Armour

Order Code Description 1 - 9 10 - 24 25+ Buy
401-157 Bayonet Thermocouple Type K with armour - 4.7mm £35.40 £32.30 £29.50 Add
401-159 Bayonet Thermocouple Type J with armour - 4.7mm £35.40 £32.30 £29.50 Add
401-169 1/8 inch BSPP adaptor x 22mm long £4.40 £4.10 £3.80 Add
