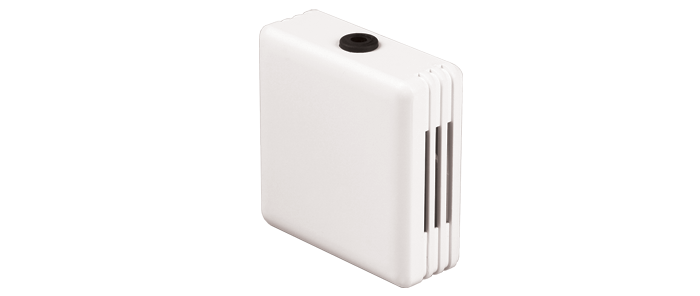

Indoor Air Temperature RTD Sensor - Pt100 and Pt1000

This air temperature sensor incorporates a Class B RTD Pt100 or Pt1000 element which can be wall mounted and is most suited to indoor applications especially in energy management systems.
  • Plastic enclosure dimensions: 70 x 70 x 27mm
  • 3 wire configuration
  • Sensor: IEC 60751 Class B - RTD Pt100 element or Pt1000 element
  • Wire termination: Screw terminal block
  • Mounting: Suited to wall mounting via screw holes in back of case
  • Cable entry: Via base of enclosure knock out hole
  • Operating range: -20°C to +100°C
PRICE PROMISE - WE WON'T BE BEATEN! click here for details
The following types are available:

Indoor Air Temperature Sensor

Order Code Description 1 - 9 10 - 24 25 - 49 Buy
515-620 Indoor Air Temperature Sensor with Pt100 element £17.20 £15.90 £14.70 Add
515-625 Indoor Air Temperature Sensor with Pt1000 element £21.50 £19.80 £18.40 Add
