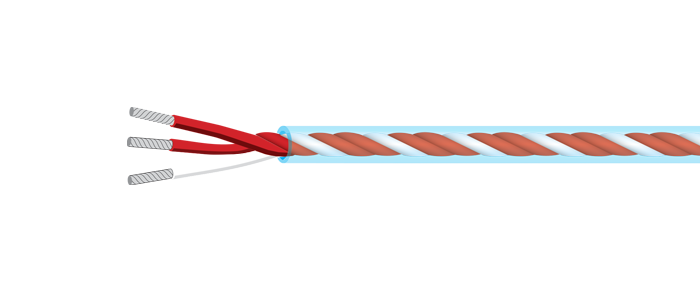

7/0.2mm PFA and Silicone Rubber Insulated RTD Extension Cable

7/0.2mm PFA and Silicone Rubber Insulated RTD Extension Cable view larger image
These PFA and silicone rubber  insulated RTD extension cables are supplied in either 25, 50, 100 or 200 metre lengths. They are available with three, four or six cores of stranded 7/0.2mm copper conductors. Cores are insulated with PFA, twisted together with an overall clear silicone rubber sheath.
  • 3, 4 or 6 cores of 7/0.2mm dia twisted conductors, PFA insulated
  • Overall silicone rubber sheath
  • Temperature range: -40°C to +200°C (short term: -50°C to +250°C)
  • Core colour codes:- 3 core: 2 cores red and 1 core white 4 core: 2 cores red and 2 cores white 6 core: 4 cores red and 2 cores white
  • Outer sheath colour: Clear
  • Available in a variety of lengths
  • Easy connection to our range of sensors via our connector systems or the rear terminals on our indicators, controllers and programmers
The following types are available:

3 Core 7/0.2mm PFA and Silicone Rubber Insulated RTD Cable

Order Code Description 1 - 4 5 - 9 10+ Buy
835-411 25 metre reel £45.60 £42.00 £38.60 Add
835-413 50 metre reel £86.00 £80.00 £73.00 Add
835-415 100 metre reel £154.00 £143.00 £131.00 Add
835-417 200 metre reel £292.00 £273.00 £251.00 Add

4 Core 7/0.2mm PFA and Silicone Rubber Insulated RTD Cable

Order Code Description 1 - 4 5 - 9 10+ Buy
835-451 25 metre reel £72.80 £67.10 £61.70 Add
835-453 50 metre reel £137.00 £127.00 £116.00 Add
835-455 100 metre reel £246.00 £228.00 £209.00 Add
835-457 200 metre reel £466.00 £437.00 £400.00 Add

6 Core 7/0.2mm PFA and Silicone Rubber Insulated RTD Cable

Order Code Description 1 - 4 5 - 9 10+ Buy
835-471 25 metre reel £84.90 £77.60 £72.80 Add
835-473 50 metre reel £160.00 £150.00 £138.00 Add
835-475 100 metre reel £291.00 £272.00 £252.00 Add
835-477 200 metre reel £555.00 £524.00 £485.00 Add
